Fairlead Mount Kit — UTV Roll Cage + Winch Bumper

Name: Fairlead Mount Kit — UTV Roll Cage + Winch Bumper
Price: 1.0 USD
Availability: InStock

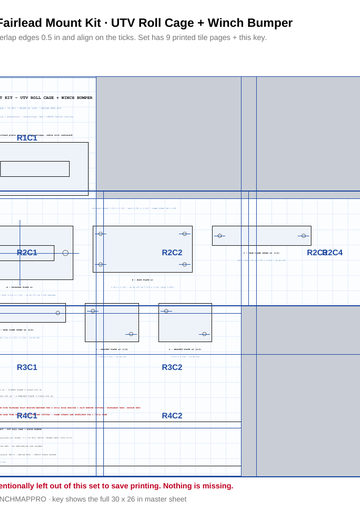

True 1:1 template kit - Fairlead Mount Kit — UTV Roll Cage + Winch Bumper: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. Pure-geometry DXF cut file included. VERIFY ON VEHICLE: CONFIRM YOUR FAIRLEAD BOLT SPACING MATCHES THE 6.000in HOLE SPACING + SLOT BEFORE CUTTING - FAIRLEADS VARY, DESIGN SPEC VERIFY ON VEHICLE: CONFIRM CAGE TUBE OD IS 1.750in BEFORE CUTTING - CLAMP STRAPS ARE DEVELOPED FOR 1.750in TUBE

One payment unlocks every template on the site — yours forever. After checkout you land in your library with everything ready to download.
