Brake Guard Kit — Cross Kart + Buggy Build

Name: Brake Guard Kit — Cross Kart + Buggy Build
Price: 1.0 USD
Availability: InStock

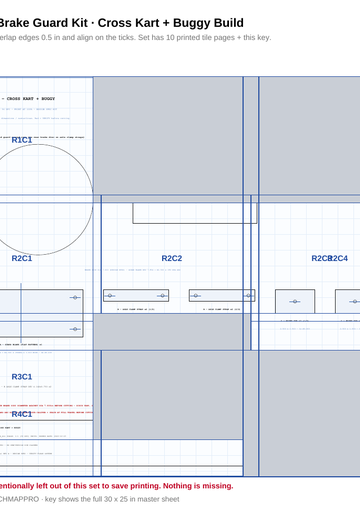

True 1:1 template kit - Brake Guard Kit — Cross Kart + Buggy Build: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. Pure-geometry DXF cut file included. VERIFY ON VEHICLE: MEASURE YOUR BRAKE DISC DIAMETER AGAINST DIA 7.000in BEFORE CUTTING - DISCS VARY, DESIGN SPEC VERIFY ON VEHICLE: CONFIRM GUARD ARC R2.500in CLEARS YOUR CALIPER + CHAIN AT FULL TRAVEL BEFORE CUTTING - DESIGN SPEC

One payment unlocks every template on the site — yours forever. After checkout you land in your library with everything ready to download.
