Boarding Step Kit — Jon Boat Build

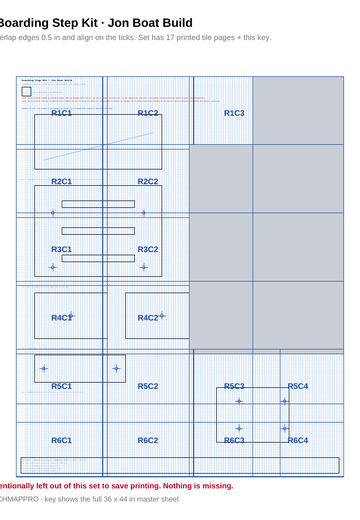

True 1:1 template kit - Boarding Step Kit — Jon Boat Build: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. Pure-geometry DXF cut file included. VERIFY ON VEHICLE: MEASURE YOUR TRANSOM THICKNESS, ANGLE AND FREEBOARD BEFORE CUTTING - THE STEP AND BRACKETS ARE DESIGN SPEC, JON BOAT TRANSOMS VARY. NEVER BOLT A STEP THROUGH A TRANSOM SECTION THAT CARRIES THE MOTOR WITHOUT REINFORCING IT VERIFY ON VEHICLE: STEP MUST SIT LEVEL AND HOLD A STANDING LOAD WITH NO FLEX OR SLIP BEFORE USE, GRIP SLOTS MUST BE DEBURRED, ALL FASTENERS MUST BE SEALED AGAINST WATER INTRUSION, AND THE STEP MUST CLEAR THE MOTOR AND TILLER THROUGH FULL STEERING - DESIGN SPEC
