Alley Sweeper Mini Bike Kit — Low Street Cruiser Frame

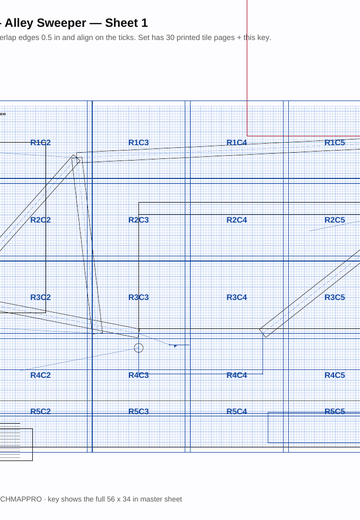

Complete Alley Sweeper low street-cruiser mini bike frame kit — 3 blueprint sheets: side view built from the frame's node geometry (tube lengths reproduce the cut list to +/-0.01in), top view with cradle widths and the Predator 3 x 6in engine slot pattern, and two solver-developed fishmouth wraps (downtube 70.5 degrees, backbone 74.1 degrees) plus engine plate, dropout plates and seat pan drawn at 1:1 with DXF cut files. Head angle is 18.7 degrees from vertical — corrected on the sheet from the original's stated 28 degrees, which its own geometry contradicts. True 1:1 scale on 9x11 tiled sheets with assembly key and print-check squares. VERIFY BEFORE CUTTING: engine plate is match-drill to your engine, and tire OD is not drawn — confirm tire and chain clearance on your wheel/tire combo.
