Fuel Jug Mount Kit — Alley Sweeper Mini Bike

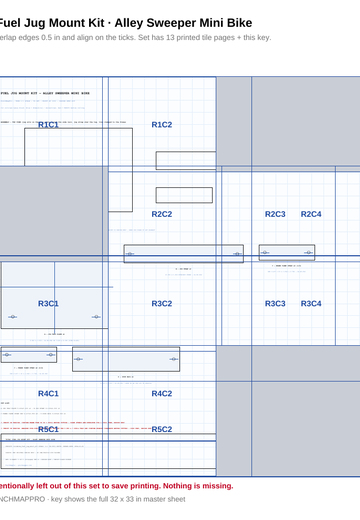

True 1:1 template kit - Fuel Jug Mount Kit — Alley Sweeper Mini Bike: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. Pure-geometry DXF cut file included. VERIFY ON VEHICLE: CONFIRM FRAME TUBE OD IS 1.250in BEFORE CUTTING - CLAMP STRAPS ARE DEVELOPED FOR 1.250in TUBE, DESIGN SPEC VERIFY ON VEHICLE: MEASURE YOUR FUEL JUG FOOTPRINT AGAINST THE 9.000 x 7.000in TRAY AND CONFIRM EXHAUST CLEARANCE BEFORE CUTTING - JUGS VARY, DESIGN SPEC
One payment unlocks every template on the site — yours forever. After checkout you land in your library with everything ready to download.
