Oil Cooler Kit — Alley Sweeper Mini Bike

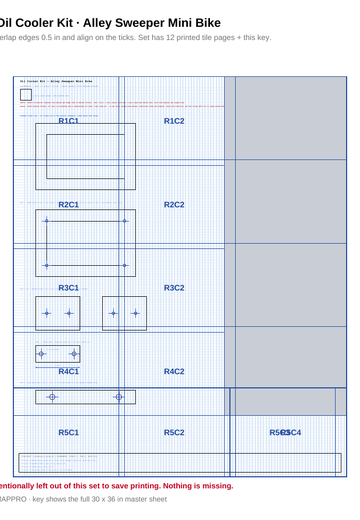

True 1:1 template kit - Oil Cooler Kit — Alley Sweeper Mini Bike: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. Pure-geometry DXF cut file included. VERIFY ON VEHICLE: MEASURE YOUR ENGINE AND FRAME TUBE OD BEFORE CUTTING - THE 9.000 x 6.000in MOUNT PLATE AND 1.250in STRAP ARE DESIGN SPEC, MINI BIKE ENGINES AND FRAMES VARY VERIFY BEFORE FITTING: FIT ONLY TO AN ENGINE WITH A PRESSURISED OIL FEED / PUMP TAKE-OFF - DO NOT TAP A SPLASH-LUBE ENGINE. HOSES MUST CLEAR THE EXHAUST, CHAIN AND RIDER LEG, AND THE COOLER MUST SIT IN CLEAN AIRFLOW BEFORE RIDING - DESIGN SPEC, COOLER + HOSES BUILDER-SUPPLIED
