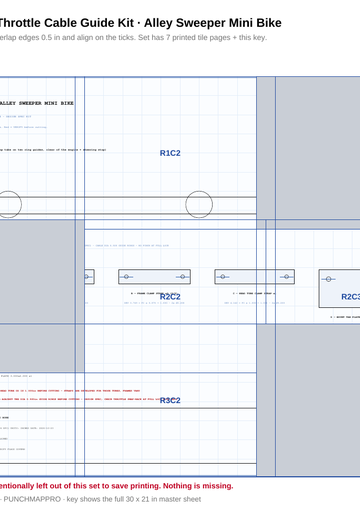

Throttle Cable Guide Kit — Alley Sweeper Mini Bike

True 1:1 template kit - Throttle Cable Guide Kit — Alley Sweeper Mini Bike: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. Pure-geometry DXF cut file included. VERIFY ON VEHICLE: CONFIRM FRAME TUBE OD IS 0.875in + HEAD TUBE OD IS 1.000in BEFORE CUTTING - STRAPS ARE DEVELOPED FOR THOSE TUBES, FRAMES VARY VERIFY ON VEHICLE: MEASURE YOUR CABLE HOUSING DIAMETER AGAINST THE DIA 0.500in GUIDE RINGS BEFORE CUTTING - DESIGN SPEC; CHECK THROTTLE SNAP-BACK AT FULL LOCK BOTH WAYS
