Chain Hoist Beam Kit — Pro Welding Shop + Workbench

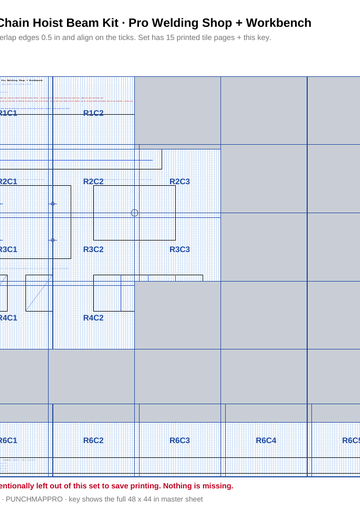

True 1:1 template kit - Chain Hoist Beam Kit — Pro Welding Shop + Workbench: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. Pure-geometry DXF cut file included. VERIFY BEFORE CUTTING: CONFIRM YOUR BEAM SIZE, SPAN AND SUPPORT STRUCTURE BEFORE CUTTING - THE END PLATES AND TROLLEY ARE DESIGN SPEC SHOP BUILD, BEAMS AND SHOP STRUCTURES VARY VERIFY BEFORE LIFTING: STRUCTURE, BEAM AND ALL BOLTS MUST BE VERIFIED FOR THE FULL LOAD BY THE BUILDER, TROLLEY MUST ROLL FREELY WITH NO BINDING, AND NO LIFT MAY EXCEED THE WEAKEST PART OF THE STRUCTURE - DESIGN SPEC, BUILDER VERIFIES LOAD PATH
One payment unlocks every template on the site — yours forever. After checkout you land in your library with everything ready to download.
