Shock Reservoir Mount Kit — UTV Roll Cage

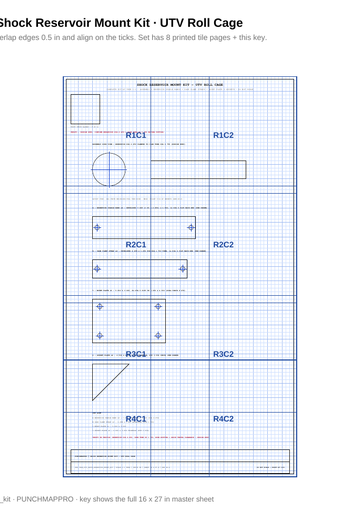

True 1:1 template kit - Shock Reservoir Mount Kit — UTV Roll Cage: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. VERIFY ON VEHICLE: MEASURE YOUR RESERVOIR DIAMETER AGAINST DIA 2.250in BEFORE CUTTING - RESERVOIRS VARY, DESIGN SPEC VERIFY ON VEHICLE: CONFIRM CAGE TUBE OD IS 1.750in BEFORE CUTTING - CLAMP STRAPS ARE DEVELOPED FOR 1.750in TUBE; CONFIRM HOSE ROUTING + SHOCK TRAVEL CLEARANCE
One payment unlocks every template on the site — yours forever. After checkout you land in your library with everything ready to download.
