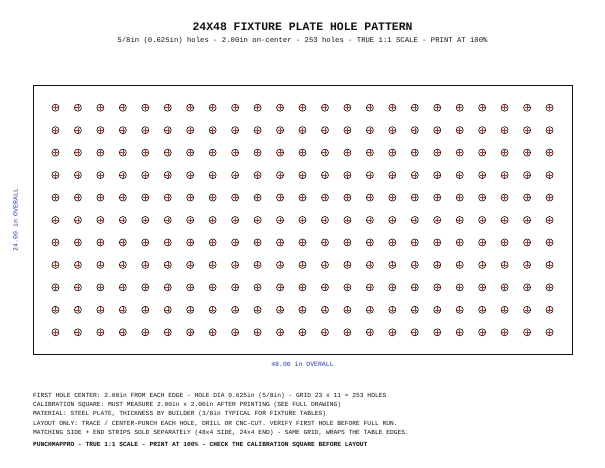

24x48 Fixture Plate Hole Pattern (5/8" holes, 2" spacing)
24x48 fixture plate hole pattern for a welding / fabrication table top: 253 holes, 0.625in (5/8in) diameter, 2.00in on-center grid, first hole center 2.00in from each edge. True 1:1 scale at 96 DPI with dimension callouts and a 2in calibration square. Print at 100%, trace or center-punch onto steel plate, drill or CNC-cut. Layout template only - plate thickness by builder (3/8in typical). Matching side and end strips are sold separately (48x4 side strip, 24x4 end strip) on the same 2in grid, so the hole pattern wraps the table edges.
Metric: Width 1219.2 mm · Height 609.6 mm · Hole Ø 15.9 mm
One payment unlocks every template on the site — yours forever. After checkout you land in your library with everything ready to download.
