Bow Hatch Kit — Jon Boat Build

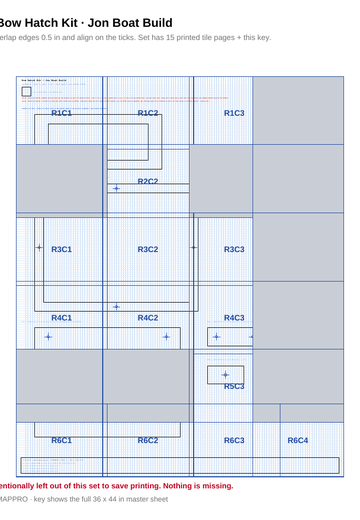

True 1:1 template kit - Bow Hatch Kit — Jon Boat Build: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. Pure-geometry DXF cut file included. VERIFY ON VEHICLE: MEASURE YOUR BOW DECK AND THE OPENING YOU WILL CUT BEFORE CUTTING - THE 18.000 x 14.000in COAMING AND 16.000 x 12.000in LID ARE DESIGN SPEC, JON BOAT DECKS VARY. NEVER CUT A HATCH INTO A DECK THAT IS A STRUCTURAL HULL MEMBER WITHOUT BRACING THE OPENING VERIFY ON VEHICLE: LID MUST SIT FLUSH AND LATCH CLOSED WITH NO RATTLE, HINGE MUST SWING THE FULL TRAVEL WITHOUT BINDING, ALL CUT EDGES MUST BE DEBURRED, AND THE HATCH MUST NOT BE STEPPED ON UNTIL ITS LOAD RATING IS BUILDER-VERIFIED - DESIGN SPEC
