Corner Clamp Fixture Kit — Pro Welding Table + Workbench

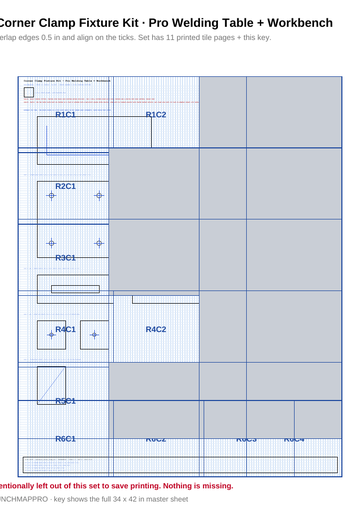

True 1:1 template kit - Corner Clamp Fixture Kit — Pro Welding Table + Workbench: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. Pure-geometry DXF cut file included. VERIFY BEFORE CUTTING: CONFIRM YOUR TABLE HOLE PATTERN BEFORE DRILLING - THE 0.500in FIXTURE HOLES ON 5.000in CENTRES ARE A DESIGN SPEC SHOP PATTERN, TABLES VARY VERIFY: THE TWO FENCE FACES MUST BE CHECKED AT A TRUE 90 DEGREES WITH A MACHINIST SQUARE AFTER WELDING, WORK MUST BE CLAMPED AGAINST BOTH FENCES BEFORE TACKING, AND CLAMP PADS MUST SIT FLAT SO MEMBERS CANNOT LIFT UNDER CLAMP LOAD - DESIGN SPEC
