Pass-Through Panel Kit — UTV Roll Cage + Buggy Build

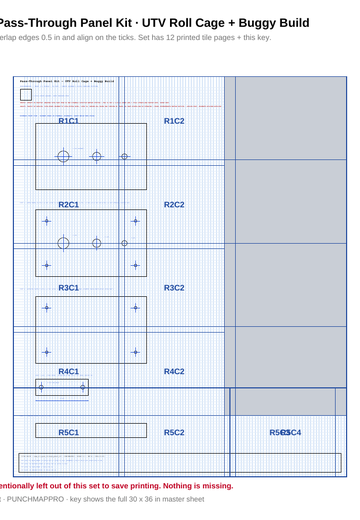

True 1:1 template kit - Pass-Through Panel Kit — UTV Roll Cage + Buggy Build: assembly views, dimensioned part sheets and a full cut list, drawn to the blueprint standard - print at 100% (2.00in print-check square on the sheet), trace, cut. Pure-geometry DXF cut file included. VERIFY ON VEHICLE: MEASURE YOUR CAGE TUBE OD AND FIREWALL POSITION BEFORE CUTTING - THE 10.000 x 6.000in PANEL AND 1.750in STRAPS ARE DESIGN SPEC, CAGES VARY VERIFY ON VEHICLE: SIZE EVERY GROMMET TO YOUR ACTUAL WIRE / HOSE OD, DEBURR ALL EDGES AND CONFIRM NO CHAFE, NO HEAT SOURCE AND NO STEERING / PEDAL INTERFERENCE BEFORE DRIVING - DESIGN SPEC, GROMMETS BUILDER-SUPPLIED
One payment unlocks every template on the site — yours forever. After checkout you land in your library with everything ready to download.
