1.75" Fishmouth Saddle Wrap Stencil (1.75" onto 1.75", 60°)

Name: 1.75" Fishmouth Saddle Wrap Stencil (1.75" onto 1.75", 60°)
Price: 1.0 USD
Availability: InStock

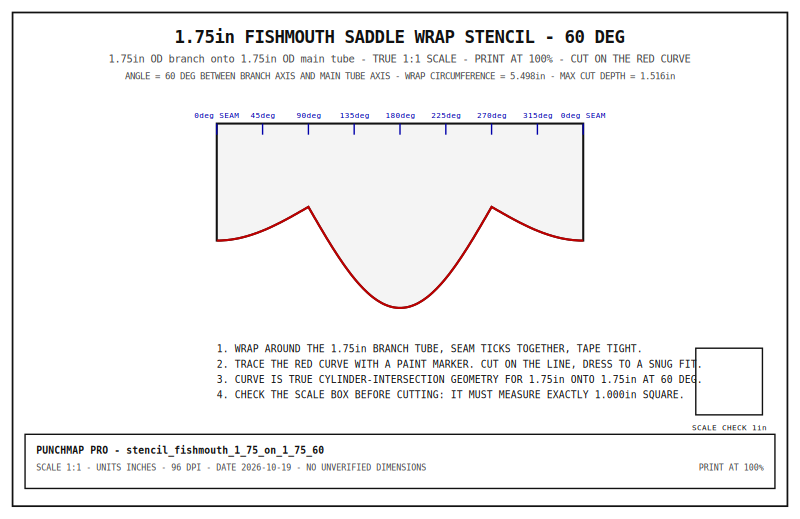

Printable wrap stencil for a true fishmouth (saddle) cope: 1.75in OD branch tube joining a 1.75in OD main tube at 60 degrees, centerlines intersecting. Unwrapped cut curve computed from the true cylinder-intersection geometry: wrap width 5.498in (pi x 1.75in circumference), max cut depth 1.516in, seam ticks every 45 degrees with the 0-degree seam marked, and a 1in scale-check box. True 1:1 scale at 96 DPI - print at 100%, wrap, trace the red curve, cut. Pure tube geometry - no vehicle fit involved. Works with any wall thickness (fits on OD). Test-fit on scrap first.

Metric: Branch OD 44.4 mm · Main OD 44.4 mm · Wrap width 139.6 mm

One payment unlocks every template on the site — yours forever. After checkout you land in your library with everything ready to download.
