Pro Welding Table Plans — Heavy Workbench Build Kit

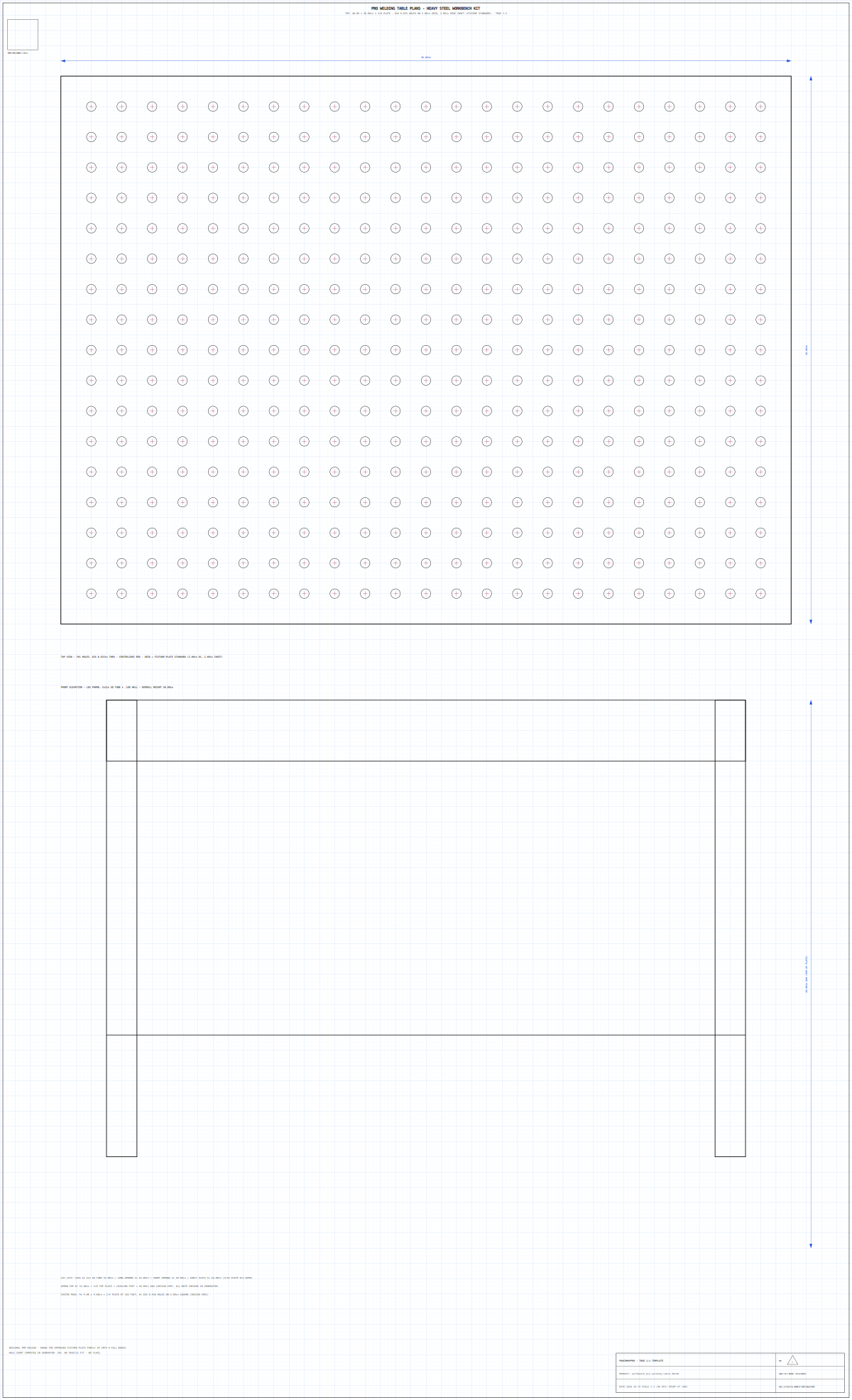

Complete build plans for a heavy pro welding table: 48.00 x 36.00in top in 3/8in plate with 391 fixture holes — DIA 0.625in (5/8in) on a 2.00in grid with 2.00in edge inset, the PunchMapPro fixture standard, so standard 5/8in fixture clamps drop in. Leg frame in 2x2in square tube x .188 wall: 4 legs at 32.00in, 2 long aprons at 42.00in, 2 short aprons at 30.00in, 5 shelf slats at 42.00in in 3/16in plate 6in wide. Apron top at 32.00in + 3/8in top plate + leveling feet = 36.00in overall height. Caster pads: 4x 4.00 x 4.00in x 1/4in plate, each with 4x DIA 0.438in holes on a 3.00in square. Weld spec on the sheet: 1/4in fillet all around at joints unless noted. True 1:1 scale at 96 DPI blueprint sheet with top view, front elevation, full cut list and a 2.00in print-check square — print at 100% and verify the square measures exactly 2.00in before cutting. Original PunchMapPro design that grows the approved fixture-plate family into a full bench — no vehicle fit involved.
