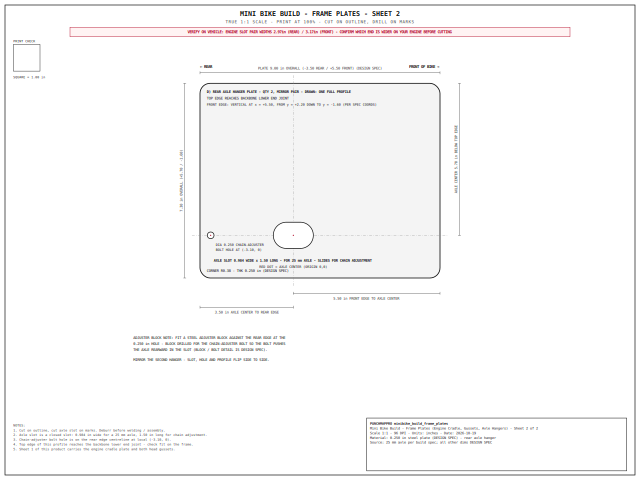

Mini Bike Build - Rear Axle Hanger Plates (Plates Sheet 2)

Sheet 2 of the Mini Bike Build frame plates: the rear axle hanger plates, one mirrored pair, true 1:1. Each plate carries the 25mm (0.984in) rear axle slot with 1.50in of chain-adjustment travel plus the chain-adjuster bolt hole, and its top edge reaches the backbone lower end joint. Hangers sit at the frame's z +3.75in / -3.75in stations from the geometry sheet. Print at 100%, trace, cut, and mirror the second plate. Ships as a print-ready tiled PDF (9 pages, Letter size, 0.5in overlap, numbered tiles with an assembly key) - print at 100% and tape the pages together.
