Integrated 30-Series Backing Plate - Predator 212 TAV & Jackshaft

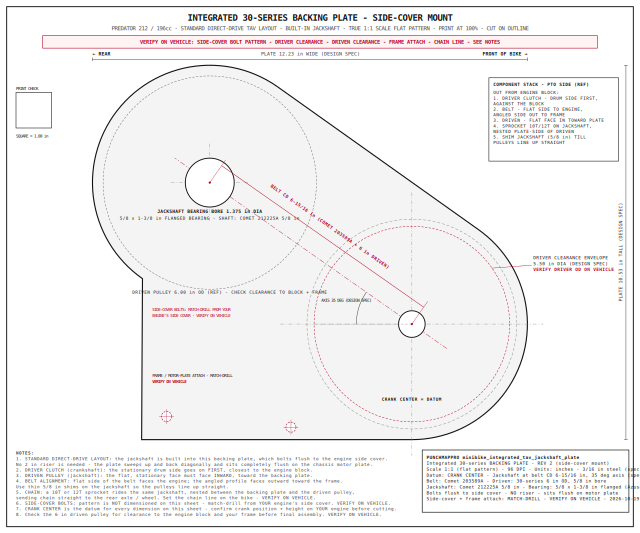

Backing plate template that puts a 30-series torque converter and a built-in jackshaft on one plate, bolting flush to the side cover of a Predator 212 / 196cc engine - the standard direct-drive TAV layout, no riser needed. Belt center distance 6-15/16in for the Comet 203589A belt with a 6in driven pulley; jackshaft is the Comet 212225A 5/8in shaft in a 1.375in flanged bearing seat, crank bore 3/4in. The sheet prints the full component stack and belt alignment notes. Ships as a print-ready tiled PDF (5 pages, Letter size, 0.5in overlap, numbered tiles with an assembly key) - print at 100% and tape the pages together. One flag rides on this sheet: the side-cover bolt pattern is match-drill from your engine's side cover - VERIFY ON VEHICLE before cutting (printed on the drawing).
