Mini Bike Build - Front Forks & Triple Clamps

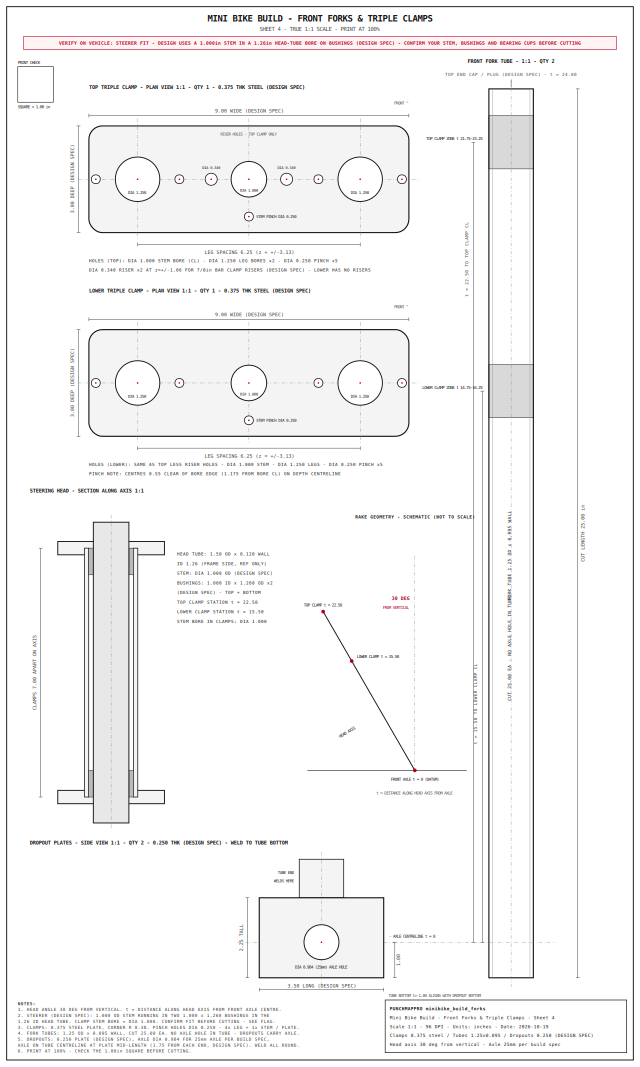

Front end for the Mini Bike Build: top and lower triple clamp plates, fork tube cuts and dropout plates, true 1:1. Clamps use a 1.000in stem bore and 1.250in leg bores at 6.25in spacing, with pinch and riser holes drawn. Fork tubes cut at 25.00in with clamp zones marked; dropout plates carry the 0.984in (25mm) axle hole. Built around the frame's 30-degree head axis. Ships as a print-ready tiled PDF (9 pages, Letter size, 0.5in overlap, numbered tiles with an assembly key) - print at 100% and tape the pages together. One flag rides on this sheet: the design uses a 1.000in stem in a 1.26in head-tube bore on bushings (design spec) - confirm your stem, bushings and bearing cups - VERIFY ON VEHICLE before cutting (printed on the drawing).
