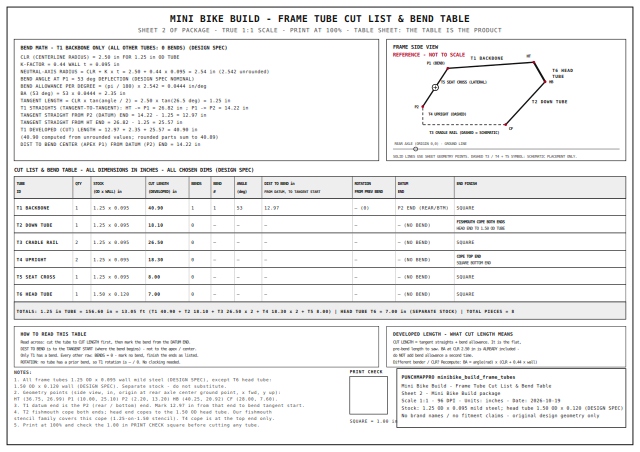

Mini Bike Build - Frame Tube Cut List & Bend Table

Every frame tube for the Mini Bike Build on one sheet: a full cut list plus bend table for 1.25in OD x 0.095in wall mild steel. Six tube rows - backbone with one 53-degree bend, down tube, two cradle rails, two uprights, seat cross, plus the 1.50in OD x 0.120in wall head tube - with datum-end distance-to-bend and developed lengths worked out at CLR 2.50 (K 0.44). Total stock: 156.60in of 1.25in tube (13.05 ft) plus 7.00in of head-tube stock. Ships as a print-ready tiled PDF (5 pages, Letter size, 0.5in overlap, numbered tiles with an assembly key) - print at 100% and tape the pages together.
