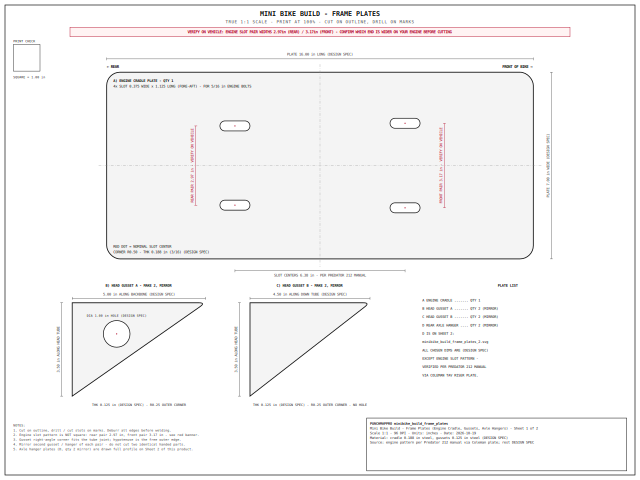

Mini Bike Build - Frame Plates Set (Cradle, Gussets, Axle Hangers)
Both Mini Bike Build frame plate sheets in one set. Sheet 1: the engine cradle plate with the verified Predator 212 slot pattern (centers 6.38in, pairs 2.97in / 3.17in) plus both head gusset pairs. Sheet 2: the mirrored rear axle hanger plates with 25mm axle slots and 1.50in of chain adjustment. Each sheet ships as a print-ready tiled PDF with numbered tiles and an assembly key - print at 100%, check the 1.00in print-check square, trace, cut, weld. One flag rides on Sheet 1: confirm which engine slot pair is wider on your engine - VERIFY ON VEHICLE before cutting (printed on the drawing).
One payment unlocks every template on the site — yours forever. After checkout you land in your library with everything ready to download.
