Mini Bike Build - Handlebars Cut & Bend Table

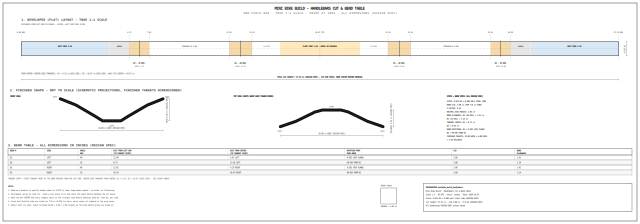

One-piece 7/8in handlebar for the Mini Bike Build, drawn as a developed 1:1 layout with a full bend table. Cut length 37.33in; bends B1 at 40 degrees and B2 at 35 degrees per side, B2 rotated 90 degrees, all at CLR 2.00, with distances from the left end and from center. Clamp and grip zones are marked. Finished targets: 28.00in wide, 6.00in rise, 4.50in pullback. Ships as a print-ready tiled PDF (9 pages, Letter size, 0.5in overlap, numbered tiles with an assembly key) - print at 100% and tape the pages together.
